Product Details:
|
Description: | Stainless Steel H Beam | Grade: | 316/316L |
---|---|---|---|
Shapes: | I Beams, H Beams, S Beams, W Beams | Length: | 6m To 12m Or As Required |
Type: | Tapered And Non-Tapered | Package: | Standard Export Package |
Highlight: | 316L ASTM stainless steel beams,316 stainless steel beams,276 stainless steel l profile |

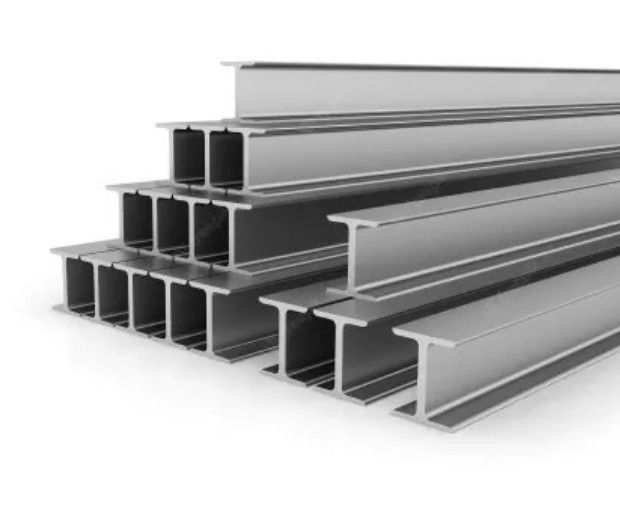

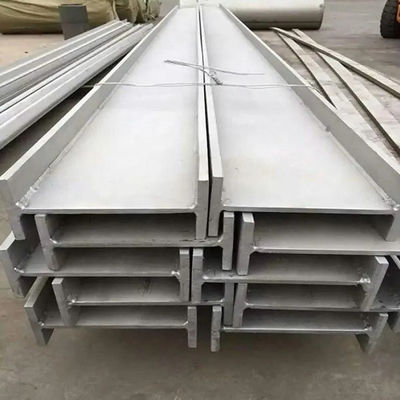

ASTM 276 316/316L Stainless Steel Beams
316 and 316L stainless steel beams find use in structural applications across a wide range of industries. As stainless steel demonstrates excellent strength and corrosion resistance, it is an ideal material for environments that contain corrosive chemicals or experience extreme temperature changes. When used in such applications, stainless steel beams create structures that are safe, efficient to build, and cost-effective.
Why Choose 316/316L Stainless Steel Beams?
At Stainless Shapes, we construct 316 stainless steel beams using extrusion, hot rolling, and laser fusing processes. We offer our 316/316L stainless steel beams in a variety of shapes, including:
I Beams, which are solid, lightweight beams commonly used in construction projects.
S Beams (American Standard Beams), which are I beams with the standard dimensions found in American constructions.
H Beams, which are stronger, reinforced, and made from three separate pieces of metal.
W Beams, which have wide, equally thick flanges.
Item No. | H (mm) | W (mm) | Thickness (mm) | Cross Section (cm²) | Weight/pc (kg/m) |
5# | 50 | 37 | 4.5 | 6.928 | 5.438 |
6.3# | 63 | 40 | 4.8 | 8.451 | 6.634 |
6.5# | 65 | 40 | 4.3 | / | 6.709 |
8# | 80 | 43 | 5 | 10.248 | 8.045 |
10# | 100 | 48 | 5.3 | 12.748 | 10.007 |
12# | 120 | 53 | 5.5 | / | 12.059 |
12.6 | 126 | 53 | 5.5 | 15.692 | 12.319 |
14#a | 140 | 58 | 6 | 18.516 | 14.535 |
14#b | 140 | 60 | 8 | 21.316 | 16.733 |
16#a | 160 | 63 | 6.5 | 21.962 | 17.24 |
16#b | 160 | 65 | 8.5 | 25.162 | 19.752 |
18#a | 180 | 68 | 7 | 25.699 | 20.174 |
18#b | 180 | 70 | 9 | 29.299 | 23 |
20#a | 200 | 73 | 7 | 28.837 | 22.637 |
20#b | 200 | 75 | 9 | 32.837 | 25.777 |
22#a | 220 | 77 | 7 | 31.846 | 24.999 |
22#b | 220 | 79 | 9 | 36.246 | 28.453 |
25#a | 250 | 78 | 7 | 34.917 | 27.41 |
25#b | 250 | 80 | 9 | 39.917 | 31.335 |
25#c | 250 | 82 | 11 | 44.917 | 35.26 |
28#a | 280 | 82 | 7.5 | 40.034 | 31.427 |
28#b | 280 | 84 | 9.5 | 45.634 | 35.832 |
28#c | 280 | 86 | 11.5 | 51.234 | 40.219 |
30#a | 300 | 85 | 7.5 | / | 34.463 |
30#b | 300 | 87 | 9.5 | / | 39.173 |
30#c | 300 | 89 | 11.5 | / | 43.883 |
32#a | 320 | 88 | 8 | 48.513 | 38.083 |
32#b | 320 | 90 | 10 | 54.913 | 43.107 |
32#c | 320 | 92 | 12 | 61.313 | 48.131 |
36#a | 360 | 96 | 9 | 60.91 | 47.814 |
36#b | 360 | 98 | 11 | 68.11 | 53.466 |
36#c | 360 | 100 | 13 | 75.31 | 59.118 |
40#a | 400 | 100 | 10.5 | 75.068 | 58.928 |
40#b | 400 | 102 | 12.5 | 83.068 | 65.208 |
40#c | 400 | 104 | 14.5 | 91.068 | 71.488 |
