DIN 1025-3 Stainless Steel Profiles Wide I Beams With Parallel Surfaces HEA100-HEA1000

DIN 1025-3 Stainless Steel Profiles Wide I Beams With Parallel Surfaces HEA100-HEA1000
DIN 1025-3 Stainless Steel Profiles Wide I Beams With Parallel Surfaces HEA100-HEA1000 DIN 1025-3 Stainless Steel Profiles Wide I Beams With Parallel Surfaces HEA100-HEA1000

Large Image :  DIN 1025-3 Stainless Steel Profiles Wide I Beams With Parallel Surfaces HEA100-HEA1000

Product Details:
Place of Origin: China
Brand Name: PUXIANG, TSINGSHAN
Certification: ISO,CE
Model Number: H Beam/ I Beam
Payment & Shipping Terms:
Minimum Order Quantity: 2 ton
Price: US$1980-US$2180
Delivery Time: 10-15 working days after receiveing advance payment
Payment Terms: T/T, T/T + L/C
Supply Ability: 1000ton/month
Contact Now

DIN 1025-3 Stainless Steel Profiles Wide I Beams With Parallel Surfaces HEA100-HEA1000

Description
Description: Stainless Steel H Beam Grade: 201, 304, 316 Etc.
Size: HEA100- HEA1000 Length: 6m To 12m Or As Required
Type: Tapered And Non-Tapered Package: Standard Export Package
Highlight:

DIN 1025-3 Stainless Steel Profiles

,

201 Stainless Steel Profiles

,

HEA100 wide beams

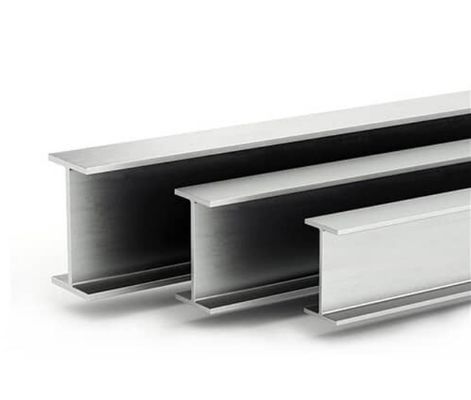

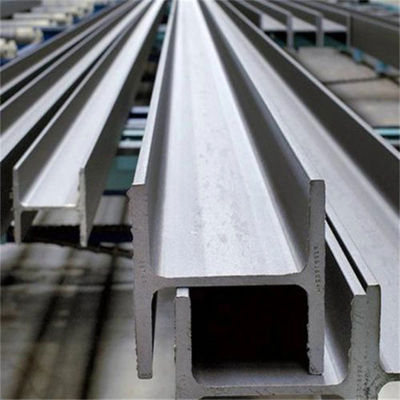

DIN 1025-3 Wide I-Beams with Parallel Surfaces, HEA100 - HEA1000

H-beams are shaped like an H. H-beam is a structural beam made of rolled steel. It is incredibly strong. It gets its name because it looks like a capital H over its cross section.The H-beam is often a lot heavier than the I-beam, which means it can take more force.H-beams can be used for spans up to 330 feet. H-beams have top and bottom flanges that stick out further from the web than the flanges on I-beams.

        DIN 1025-3 Stainless Steel Profiles Wide I Beams With Parallel Surfaces HEA100-HEA1000 0           DIN 1025-3 Stainless Steel Profiles Wide I Beams With Parallel Surfaces HEA100-HEA1000 1
Item Geometry Weight
h (mm) b (mm) tw(mm) tf (mm) r1(mm) (kg/m)
HEA 100 96 100 5 8 12 16.7
HEA 120 114 120 5 8 12 19.9
HEA 140 133 140 5.5 8.5 12 24.7
HEA 160 152 160 6 9 15 30.4
HEA 180 171 180 6 9.5 15 35.5
HEA 200 190 200 6.5 10 18 42.3
HEA 220 210 220 7 11 18 50.5
HEA 240 230 240 7.5 12 21 60.3
HEA 260 250 260 7.5 12.5 24 68.2
HEA 280 270 280 8 13 24 76.3
HEA 300 290 300 8.5 14 27 88.3
HEA 320 310 300 9 15.5 27 97.7
HEA 340 330 300 9.5 16.5 27 104.8
HEA 360 350 300 10 17.5 27 112.1
HEA 400 390 300 11 19 27 124.8
HEA 450 440 300 11.5 21 27 139.7
HEA 500 490 300 12 23 27 155
HEA 550 540 300 12.5 24 27 166.3
HEA 600 590 300 13 25 27 177.8
HEA 650 640 300 13.5 26 27 189.7
HEA 700 690 300 14.5 27 27 204.5
HEA 800 790 300 15 28 30 224.4
HEA 900 890 300 16 30 30 251.6
HEA 1000 990 300 16.5 31 30 272.2

DIN 1025-3 Stainless Steel Profiles Wide I Beams With Parallel Surfaces HEA100-HEA1000 2


DIN 1025-3 Stainless Steel Profiles Wide I Beams With Parallel Surfaces HEA100-HEA1000 3
DIN 1025-3 Stainless Steel Profiles Wide I Beams With Parallel Surfaces HEA100-HEA1000 4
