DIN 1025-2 European Standard Wide Beams With Parallel Surfaces HEB Beams Grade 304

DIN 1025-2 European Standard Wide Beams With Parallel Surfaces HEB Beams Grade 304
DIN 1025-2 European Standard Wide Beams With Parallel Surfaces HEB Beams Grade 304 DIN 1025-2 European Standard Wide Beams With Parallel Surfaces HEB Beams Grade 304

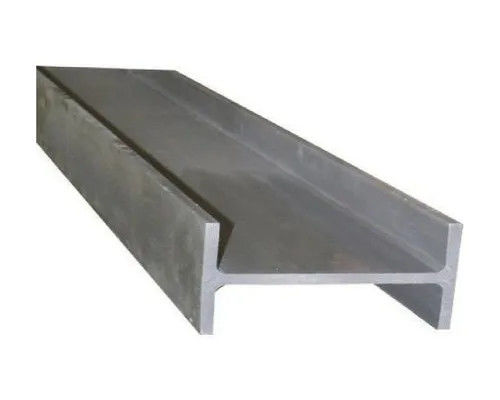

Large Image :  DIN 1025-2 European Standard Wide Beams With Parallel Surfaces HEB Beams Grade 304

Product Details:
Place of Origin: China
Brand Name: PUXIANG, TSINGSHAN
Certification: ISO,CE
Model Number: HEB
Payment & Shipping Terms:
Minimum Order Quantity: 2 ton
Price: US$1980-US$2180
Delivery Time: 10-15 working days after receiveing advance payment
Payment Terms: T/T, T/T + L/C
Supply Ability: 1000ton/month
Contact Now

DIN 1025-2 European Standard Wide Beams With Parallel Surfaces HEB Beams Grade 304

Description
Description: Stainless Steel H Beam Grade: 304
Size: 100x100mm To 1000x300mm Length: 6m To 12m Or As Required
Type: Tapered And Non-Tapered Package: Standard Export Package
Highlight:

DIN 1025-2 wide beams

,

304 wide beams

,

6m heb beams

DIN 1025-2 European Standard Wide Beams with Parallel Surfaces, Grade 304

We could offer you a variety of grade of stainless steel beams, often referred to as H beam or I-Beams, in both a tapered and non-tapered style in many sizes. We supply hot rolled and welded stainless steel H beams throughout the world in both imperial and metric sizes. We are a profile solutions company, and custom shapes, sizes and alloys are available upon request. If you do not see what you are looking for, please contact us, and our experienced staff will help guide you with your custom profile needs.

DIN 1025-2 Wide I-Beams with Parallel Surfaces
DIN 1025-2 European Standard Wide Beams With Parallel Surfaces HEB Beams Grade 304 0 DIN 1025-2 European Standard Wide Beams With Parallel Surfaces HEB Beams Grade 304 1
Item Geometry Weight
h (mm) b (mm) tw(mm) tf (mm) r1(mm) (kg/m)
HEB 100 100 100 6 10 12 20.4
HEB 120 120 120 6.5 11 12 26.7
HEB 140 140 140 7 12 12 33.8
HEB 160 160 160 8 13 15 42.6
HEB 180 180 180 8.5 14 15 51.3
HEB 200 200 200 9 15 18 61.3
HEB 220 220 220 9.5 16 18 71.4
HEB 240 240 240 10 17 21 83.2
HEB 260 260 260 10 17.5 24 92.6
HEB 280 280 280 10.5 18 24 102.8
HEB 300 300 300 11 19 27 117
HEB 320 320 300 11.5 20.5 27 126.4
HEB 340 340 300 12 21.5 27 134.2
HEB 360 360 300 12.5 22.5 27 142.1
HEB 400 400 300 13.5 24 27 155.4
HEB 450 450 300 14 26 27 171.1
HEB 500 500 300 14.5 28 27 187.6
HEB 550 550 300 15 29 27 199.4
HEB 600 600 300 15.5 30 27 211.9
HEB 650 650 300 16 31 27 224.5
HEB 700 700 300 17 32 27 240.2
HEB 800 800 300 17.5 33 30 262.2
HEB 900 900 300 18.5 35 30 291.2
HEB 1000 1000 300 19 36 30 314

DIN 1025-2 European Standard Wide Beams With Parallel Surfaces HEB Beams Grade 304 2


DIN 1025-2 European Standard Wide Beams With Parallel Surfaces HEB Beams Grade 304 3
DIN 1025-2 European Standard Wide Beams With Parallel Surfaces HEB Beams Grade 304 4



Tag:

Hot Rolled Stainless Steel Profiles,

304 ss profile,

5" Stainless Steel Profiles
