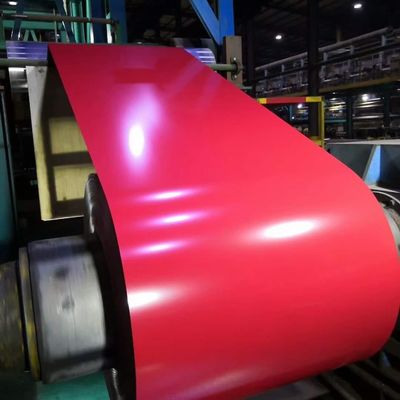

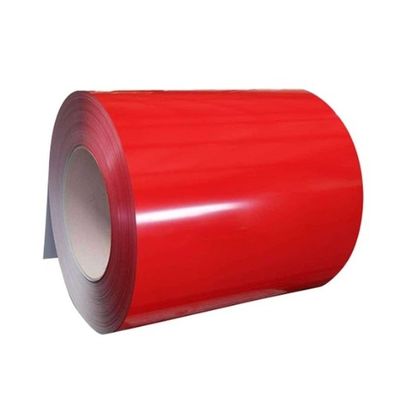

Red Color PPGI PPGL DX51D Pre Painted Galvanized Iron Coil

Large Image : Red Color PPGI PPGL DX51D Pre Painted Galvanized Iron Coil

Product Details:

Place of Origin:	China
Brand Name:	PUXIANG
Certification:	ISO,CE
Model Number:	PPGI

Payment & Shipping Terms:

Minimum Order Quantity:	3 ton
Price:	US$560-US$660
Delivery Time:	10-15 working days after receiveing advance payment
Payment Terms:	T/T, T/T + L/C
Supply Ability:	100ton/month

Contact Now

Red Color PPGI PPGL DX51D Pre Painted Galvanized Iron Coil

Description

Description:	PPGI Coil	Material:	DX51D
Thickness:	0.12-2mm	Width:	1000mm,1250mm Or As Required
Color:	Red	Zinc Coating:	40-275g/m²
Surface:	With Plastic Film , Chromated, Wrinkle, Matt, Decorate, Sand Surface, Highlight	Coil Weight:	3-5 Ton Or As Required
Highlight:	Red PPGI PPGL , PPGI PPGL DX51D , Pre Painted galvanized iron coil

Pre-Painted Galvanized Iron Coil, PPGI Coil
PPGI is pre-painted galvanized steel, also known as pre-coated steel, color coated steel etc. Using Hot Dip Galvanized Steel Coil as the substrate, PPGI is made by first going through surface pretreatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used including polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.

Item	PPGI steel coil	PPGL steel coil
Standard	GB/T-12754	GB/T-12754
	JIS G 3312	JIS G 3312
	EN 10169	EN 10169
	ASTM A 792	ASTM A 792
Grade	SGCC,SGCD,SGCE
	DX51D,DX52D,DX53D,DX54D,DX56D
	S220GD,S250GD,S280GD,S300GD,S320GD,S350GD,S390GD,S420GD, S450GD,S550GD
	DC01,DC03,DC04,Q195, Q235 , CSA, CSB
Thickness	0.12-2.0 mm (±0.05 mm)	0.12-2.0 mm (±0.05 mm)
Width	30-1500 mm (±2 mm)	30-1500 mm (±2 mm)
Zinc/Aluzinc coating	Zn 40 g/sm-275 g/sm	Alu-zinc 40-150 g/sm
Coil weight	3-5 tons or As your requirement.
Painting	prime : 5 μm	prime : 5 μm
Painting	top coating : 7–20 μm	top coating : 7–20 μm
Back coating	7 –15 μm	7 –15 μm
Color	As RAL or your requirement.
Surface Treatment	With plastic film , Chromated, Wrinkle, Matt, Decorate, Sand surface, Highlight.
Package	Standard Export Seaworthy Package

Red Color PPGI PPGL DX51D Pre Painted Galvanized Iron Coil 0

Red Color PPGI PPGL DX51D Pre Painted Galvanized Iron Coil 1

Red Color PPGI PPGL DX51D Pre Painted Galvanized Iron Coil 2
