Product Details:
|
Description: | Hot Dip Galvanized Coils | Standard: | EN 10346 |
---|---|---|---|
Material: | S420GD | Thickness: | 0.12-4.6mm |
Width: | 1250mm, 1500mm Or As Required | Zinc Coating: | 40g-275g/m² |
Surface: | Small Spangles,Zero Spangles | Package: | Standard Export Seaworthy Package |
Highlight: | S420GD Galvanized Steel Strip Coil,Galvanized Steel Strip Coil S420GD+Z,4.6mm zinc coated steel coil |

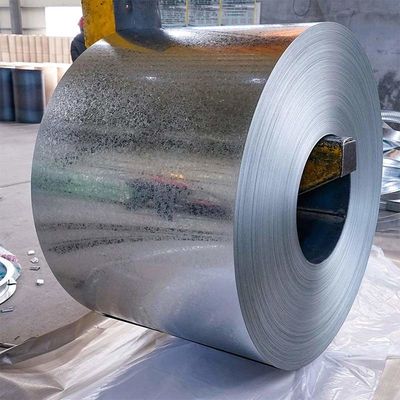

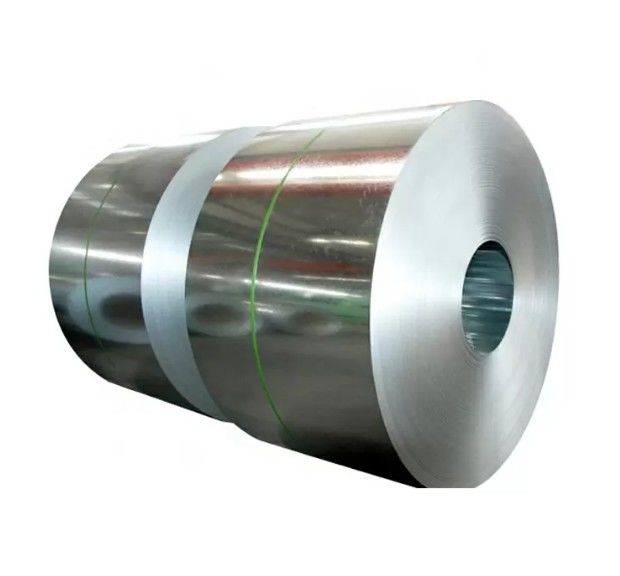

Structural Steel S420GD+Z Galvnaized Steel Coil
S420GD+Z is galvanized structural steel, where S indicates that the material is structural steel, 420 represents the minimum yield strength of the material, which is 420 MPa, G indicates that the characteristics of the material's steel grade are not specified, D indicates that the material coating is hot-dip plated+ Z indicates that the coating is pure zinc. The material of S420GD is a low alloy structural steel that contains a small amount of alloying elements to improve strength and toughness.
Product Name | Galvanized Steel Coil |
Grade | SGCC,SGCD,SGCE |
DX51D,DX52D,DX53D,DX54D,DX56D | |
S220GD,S250GD,S280GD,S300GD,S320GD,S350GD,S390GD,S420GD, S450GD,S550GD | |
CSA, CSB | |
Thickness | 0.12 ~ 3.0 mm (cold rolled) |
1.20 ~ 4.60 mm (Hot-rolled ) | |
Width | 10 - 600 mm (strip) |
600 - 1250 mm (coil) | |
Coil ID | 508 mm /610 mm |
Coil Weight | 3 - 8 ton or as required. |
Zinc Coating | 30g - 275g / m2 |
Spangle | Big spangle,Regular spangle,Mini spangle,Zero spangle |
Surface Treatment | Oil,Passivation, Chromated, Skin-passed, Anti-finger Print |
